ICT WEL-R082 Cable
The ICT WEL-R082 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-R082 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-R082 Cable
The ICT WEL-R082 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL R082 |
|---|---|
| Brand | ICT/Pyramid |
| Connector | 7-pin |
| Interface | Pulse/Hopper |
| Voltage | 12V DC interface; power input is identified as +12V/+24V |
Works with
- GP58CR
- SP1

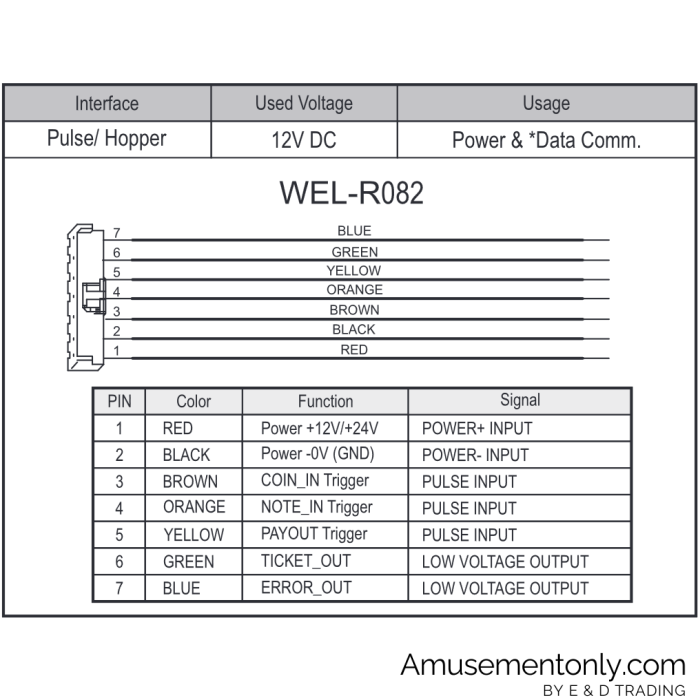

Pinout
| Signal | Pin | Wire |
|---|---|---|
| Power +12V/+24V | 1 | RED |
| Power -0V (GND) | 2 | BLACK |
| COIN_IN Trigger | 3 | BROWN |
| NOTE_IN Trigger | 4 | ORANGE |
| PAYOUT Trigger | 5 | YELLOW |
| TICKET_OUT | 6 | GREEN |
| ERROR_OUT | 7 | BLUE |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
