ICT WEL-R061 Cable
The ICT WEL-R061 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-R061 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-R061 Cable
The ICT WEL-R061 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Part no. | 172161-1 |
|---|---|
| SKU | WEL-R061 |
| Carries | Extension wire for WEL-RL701 |
| Components (associated) | A.M.P, CAP, FS2, WEL-033-1, SPIN IGT, CN3, F51 |
| Dimensions | 0.551 inches |
| Interface | Parallel A1 |
| Type (connector) | MOLEX 7066G6P |
| Voltage | 12V DC |

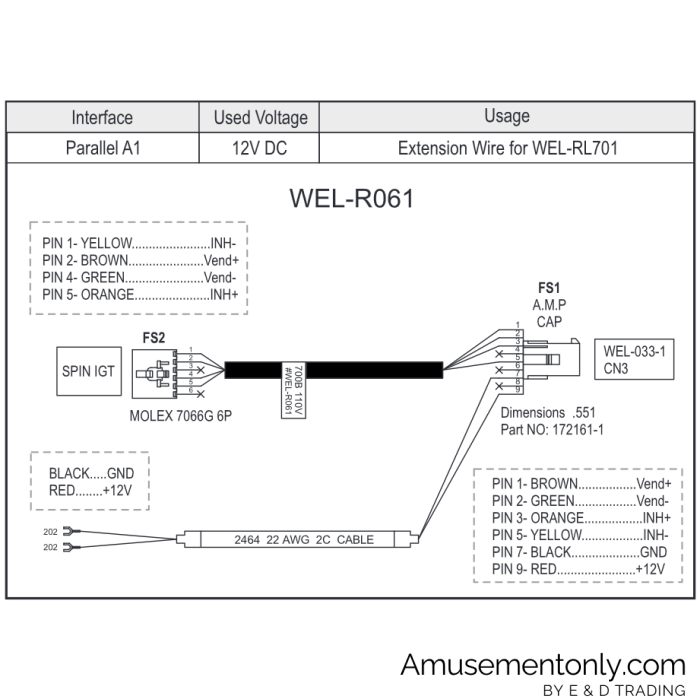

Pinout
| Signal | Pin | Wire |
|---|---|---|
| GND | BLACK | BLACK |
| N/A | PN 1 | BROWN |
| +12V | RED | RED |
| Vend- | PN 2 | GREEN |
| N/A | PN 3 | ORANGE |
| N/A | PN 5 | YELLOW |
| GND | PN 7 | BLACK |
| +12V | PN 9 | RED |
Good to know
- Brown, PIN: 4 green, and
- 77
- 83 platforms. Integration
- ICT: L70, L70F
- L70,: L70F, L70T
- L70F,: L70T, L77F
- L70T,: L77F, L77T
- L77T, and: L83 platforms. Integration
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
