ICT WEL-R0003 Cable

The ICT WEL-R0003 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…

$14.95
SKUWEL-R0003
In stock
Buy Now

Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707

Description / ICT WEL-R0003 Cable

The ICT WEL-R0003 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.

What it does

Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.

Specifications

SKUWEL-R0003
ConnectorsTMT 2×4, Molex 51004-10P, AMP 172340-1
FunctionPower & data communication
InterfaceRS232 (UART)
Voltage12V DC

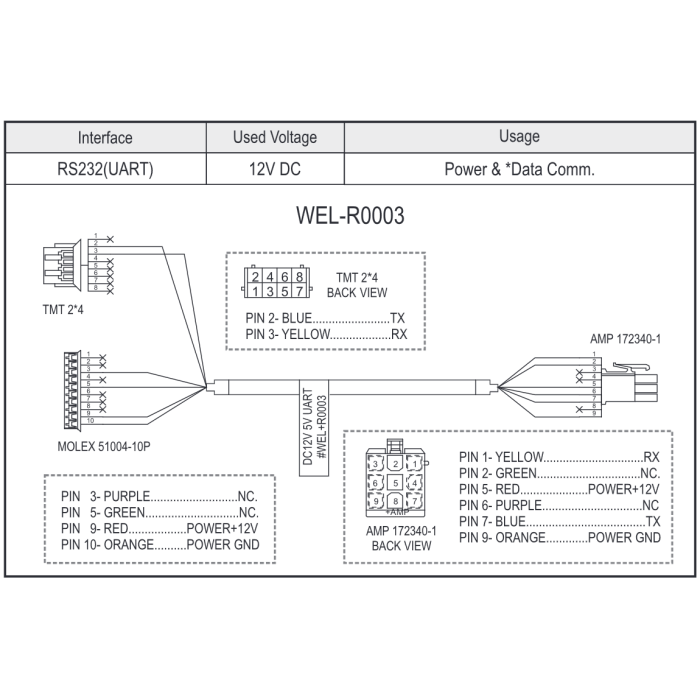

Wire-by-wire: Molex 51004-10P

SignalPinWire colour
N.C3purple
N.C5green
Power +12V9red
Power GND10orange

Wire-by-wire: AMP 172340-1, back view

SignalPinWire colour
RX1yellow
N.C2green
Power +12V5red
N.C6purple
TX7blue
Power GND9orange

Help from E&D Trading

Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
