ICT WEL-R0002 Cable

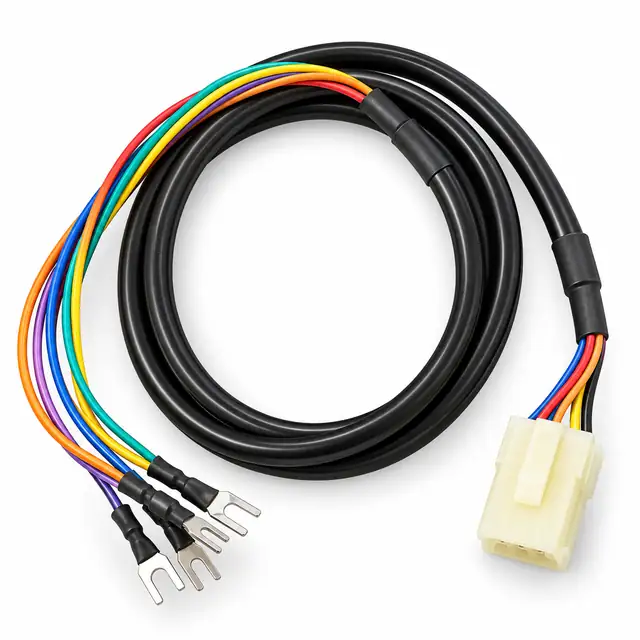

The ICT WEL-R0002 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-R0002 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-R0002 Cable
The ICT WEL-R0002 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-R0002 |
|---|---|
| Connectors | Molex 51004-10P & open-end wire leads |
| Interfaces | Pulse & RS232 |
| Voltage | 12V DC |
Wire-by-wire: Molex 51004-10P assignments are specified from the back view
| Signal | Pin | Wire colour |
|---|---|---|
| — | 1 | yellow—n.c |
| — | 2 | green—inhibit |
| +12V | 5 | red—power |
| of Service | 6 | purple—out |
| — | 7 | blue—credit |
| GND | 9 | orange—power |
Good to know
- The cable serves as the WEL-R0001 extension wire for compatible ICT bill acceptor systems.
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
