ICT WEL-R0001 Cable
The ICT WEL-R0001 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-R0001 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-R0001 Cable
The ICT WEL-R0001 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-R0001 |
|---|---|
| Connectors | 10-pin & AMP 9-pin |
| Interfaces | Pulse & RS232 |
| Pulse | power & data communication; RS232: power |
| Voltage | 12V DC |

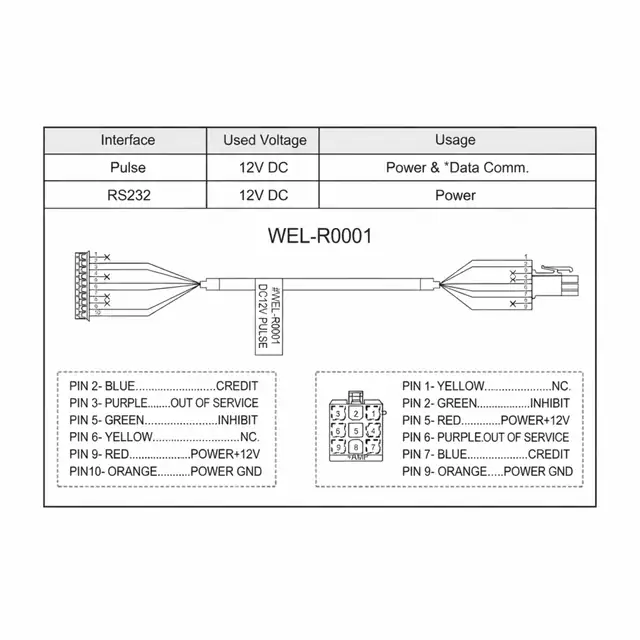

Wire-by-wire: The 10-pin side assigns
| Signal | Pin | Wire colour |
|---|---|---|
| to Credit | 2 | blue |
| to Out of Service | 3 | purple |
| to Inhibit | 5 | green |
| to N.C | 6 | yellow |
| to Power +12V | 9 | red |
| to Power GND | 10 | orange |
Wire-by-wire: The AMP 9-pin connector assigns
| Signal | Pin | Wire colour |
|---|---|---|
| to N.C | 1 | yellow |
| to Inhibit | 2 | green |
| to Power +12V | 5 | red |
| to Out of Service | 6 | purple |
| to Credit | 7 | blue |
| to Power GND | 9 | orange |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
