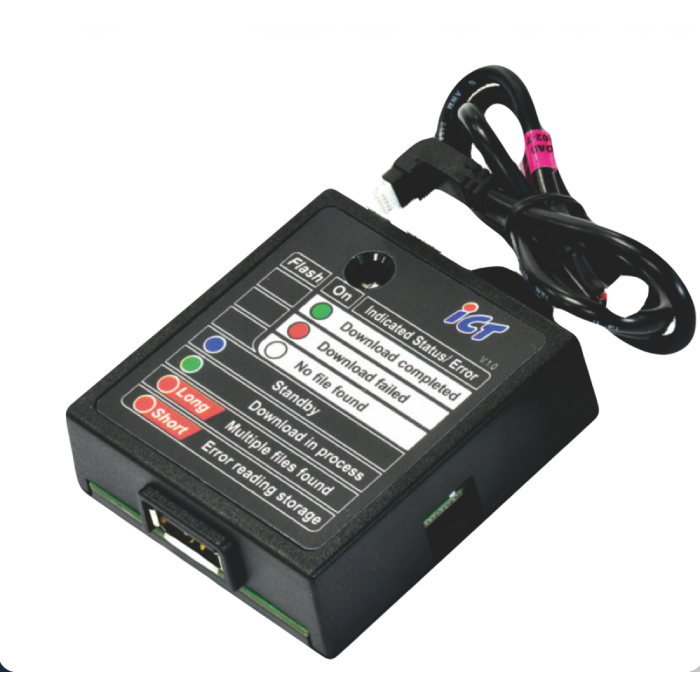

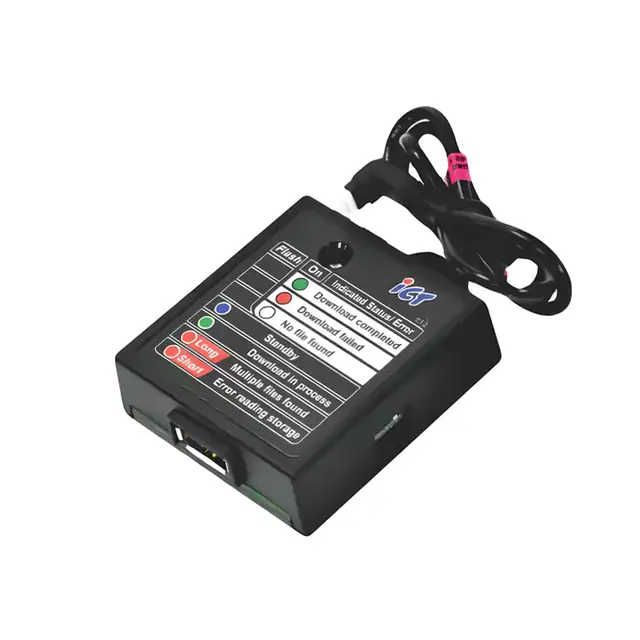

ICT USB Converter Board (H6685B-R) for Bill Acceptor Firmware Updates

The ICT USB Converter Board (Model H6685B-R) is a professional service tool designed to update firmware on supported ICT bill acceptors using a standard USB flash drive. It streamlines maintenance for amusement, vending, kiosk, and skill game operators by reducing downtime and simplifying validator servicing.

Overview

Instead of connecting a PC directly to the validator, the USB Converter Board allows technicians to load the correct firmware file onto a USB drive and perform upgrades through the converter board and the appropriate download cable. A built-in LED status indicator makes it easy to monitor the upgrade process and identify common issues.

Key Features

• USB-based firmware update tool for compatible ICT bill validators
• Supports upgrades via standard USB flash drive (FAT32 formatting recommended)
• LED status indicator for upgrade progress and troubleshooting
• Compact, durable design for bench or field service
• Helps verify software version and checksum information after updates

Compatible ICT Bill Acceptor Series

This USB Converter Board supports multiple ICT validator families, including:

• TAO-A/V Series
• L Series (including L70, L77, L83, L77F)
• LX7 Series
• V7E / V77E
• S7ER
• S7A Series

Note: Compatibility can depend on the specific model and harness/download cable used.

Technical Specifications

• Voltage: DC +3.3V
• Current: 160 mA
• Power Consumption: 0.53 W
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -30°C to 70°C

What’s Included

• ICT USB Converter Board (H6685B-R)

Download cable and USB flash drive are sold separately unless explicitly included in your order.

Authorized Distributor & Support

AmusementOnly.com is an authorized Crane MEI distributor for over 30 years, offering the best prices and repair support.

Need help confirming compatibility or selecting the correct accessory cable? Contact our team and we’ll make sure you get the right setup for your validator and application.
