ICT CU-R961-1 12v Fanout Cable
PIN Configuration & Extension Wire for WEL-RM044 | ICT Protocol & STD Pulse
$4.95
- SKU
- CU-R961-1
Description / ICT CU-R961-1 12v Fanout Cable
CU-R961-1 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| Pulse | 12V DC | Extension Wire for WEL-RL702 |
| Pulse | 12V DC | Extension Wire for WEL-RZU02 |
| ICT (RS232) | 12V DC | Extension Wire for WEL-RZU02 |
| ccNet compatible | 12V DC | Extension Wire for WEL-RL802 |
| RS232 A0 | 12V DC | Extension Wire for WEL-RL825 |
| Pulse | 12V DC | Extension Wire for WEL-RL826 |
| ICT (RS232) | 12V DC | Extension Wire for WEL-RL802 |
| ccNet compatible | 12V DC | Extension Wire for WEL-RL825 |
| Pulse (Out of service) | 12V DC | Extension Wire for WEL-RL826 |
CU-R961-1 Specifications
Connector: AMP 172332-1
AMP 172332-1 Pin Configuration

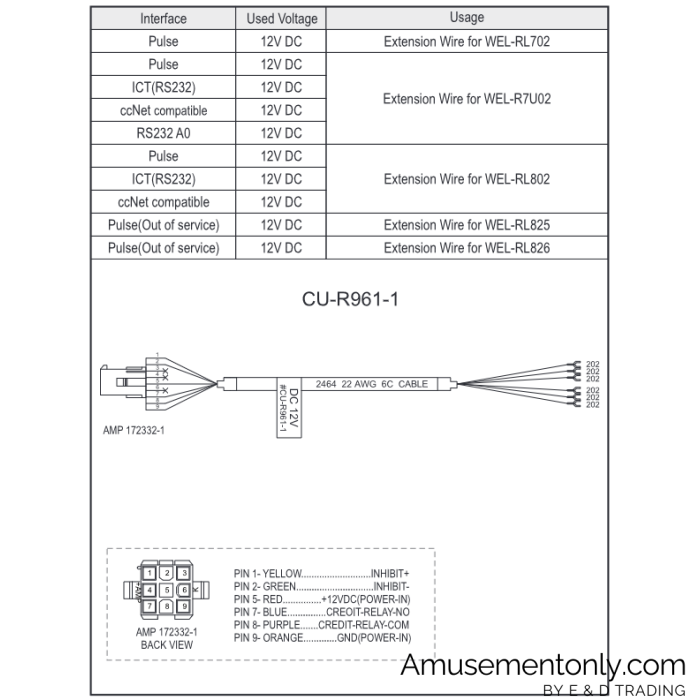

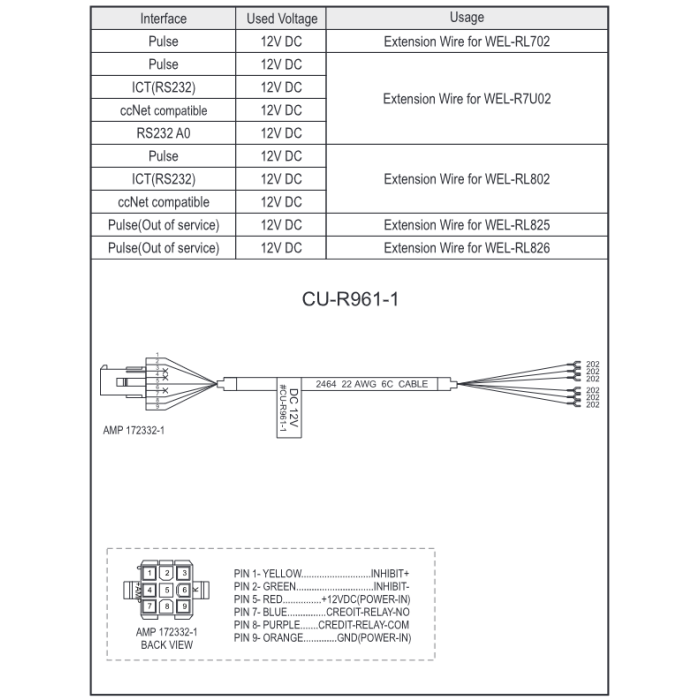

| Pin | Color | Function |
|---|---|---|
| PIN 1 | Yellow | INHIBIT+ |
| PIN 2 | Green | INHIBIT- |
| PIN 5 | Red | +12VDC (POWER-IN) |
| PIN 7 | Blue | CREDIT-RELAY-NO |
| PIN 8 | Purple | CREDIT-RELAY-COM |
| PIN 9 | Orange | GND (POWER-IN) |
Compatibility
This product is designed as an extension wire for various interfaces, including:
- WEL-RL702
- WEL-RZU02
- WEL-RL802
- WEL-RL825
- WEL-RL826
