ICT 2-BA-RNK10 Cable
The ICT 2-BA-RNK10 is a data cable for setting up and talking to an ICT validator over RS232 or ICT protocol at 12V DC. It runs from a female 9-pin D-SUB on the PC or tool side to the validator's TMT 24 connector. Four-conductor 22AWG cable, type 2464. The white wire carries download VCC, which is…
Description / ICT 2-BA-RNK10 Cable
The ICT 2-BA-RNK10 is a data cable for setting up and talking to an ICT validator over RS232 or ICT protocol at 12V DC. It runs from a female 9-pin D-SUB on the PC or tool side to the validator's TMT 24 connector.

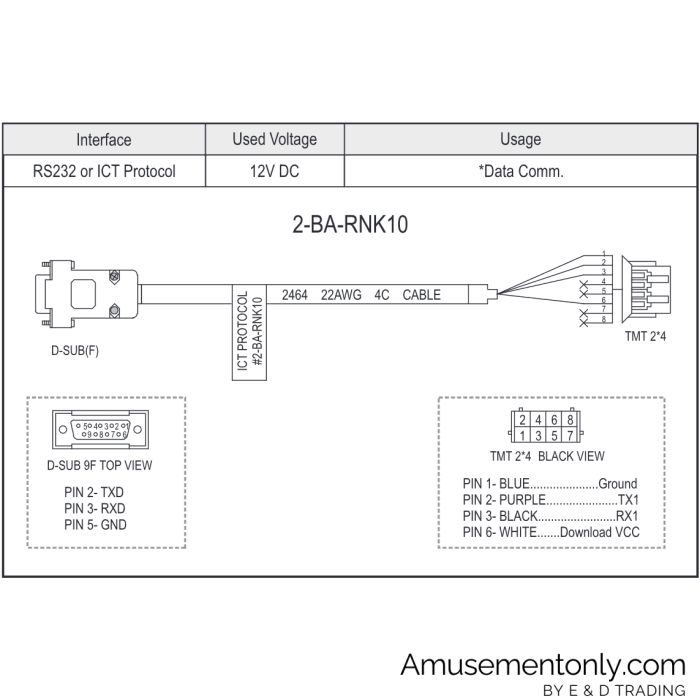

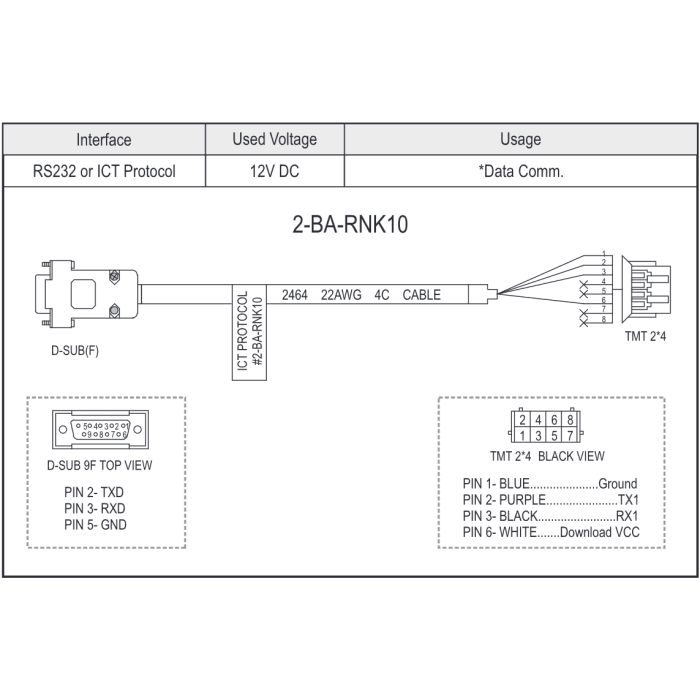

Wiring
| D-SUB 9F pin 2 | TXD |
|---|---|
| D-SUB 9F pin 3 | RXD |
| D-SUB 9F pin 5 | GND |
| TMT 24 pin 1 (blue) | ground |
| TMT 24 pin 2 (purple) | TX1 |
| TMT 24 pin 3 (black) | RX1 |
| TMT 24 pin 6 (white) | download VCC |
Cable
Four-conductor 22AWG cable, type 2464. The white wire carries download VCC, which is why this is the lead to use for firmware downloads and bench work.
