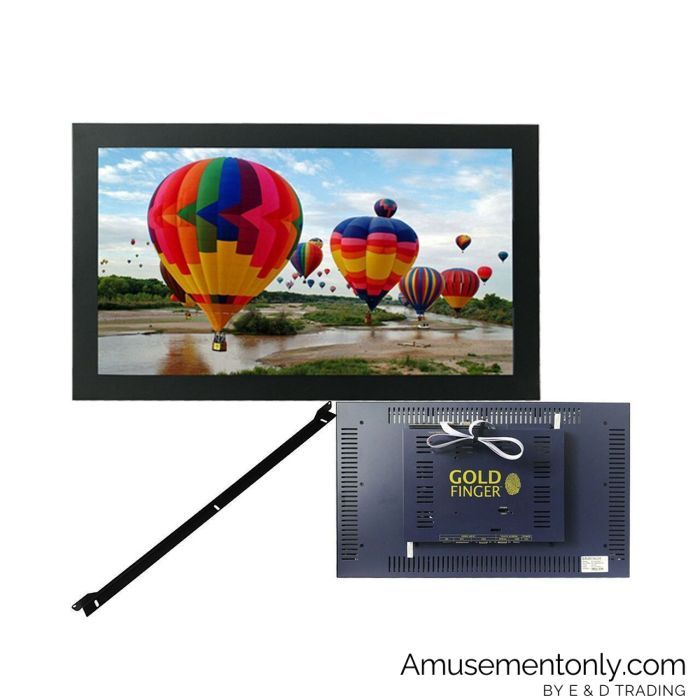

21.5"-inch GF22H22A15 Non-Extruded w/o LED Touchscreen Monitor

Part Number: 401271

Specifications:

Touch Technology & Capacity:

• Technology: PCAP (Projected Capacitive) – Multi-Touch
• Touch Interfaces: USB and Serial

Display:

• Diagonal Size: 21.5” Diagonal, Active Matrix TFT LCD
• Aspect Ratio: 16:9
• Active Area: 476 mm (H) x 267 mm (V)
• Max Resolution: 1920 (H) x 1080 (V)
• Pixel Pitch: .248 (H) x .248 (V)
• Other Supported Resolutions: 640 x 480; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 800; 1280 x 960; 1280 x 1024; 1360 x 768; 1366 x 768; 1440 x 900; 1680 x 1050; 1920 x 1080
• Video Refresh Rate: 60Hz-75Hz

Video I/O Ports:

• HDMI
• DVI-D
• VGA

Display Quality:

• Viewing Angle: Horizontal: ±89°; Vertical: ±89°
• Number of Colors: 8-bit color depth; Displaying 16.7M colors
• Brightness Rating: 250 nits
• Color Temperatures: Min: 8,000K; Max: 12,000K
• Response Time: Typ: 14ms; Max: 20ms
• Contrast Ratio: Typ: 1000:1; Min: 700:1

Power:

• Power Adapter: 24V DC Adapter
• Monitor Input Voltage Range: 24V DC
• Adapter Input Voltage Range: 100-240V
• Power Consumption: Typ: 17.1W; Max: 25.6W

Dimensions & Weight:

• Monitor Dimensions: 538.5mm x 328.5mm x 50.5mm
• Weight: 12.2 lbs / 5.53 kgs

Environmental Conditions:

• Operating Temperature: 0°C - +50°C
• Storage Temperature: -20°C - +60°C
• Humidity Range: 10% - 80% Relative Humidity

On-Screen Display:

• Accessible with Goldfinger Remote
• Controls: Power, Back, Left, Right, Menu, Overscan
• Picture Mode, Contrast, Brightness, Color, Tint, Sharpness
• Backlight, Color Temp, Aspect Ratio, Noise Reduction
• Clock, Off Time, On Time, Sleep Timer
• Languages: English, French, Italian, German, Spanish, Chinese, Japanese

Mounting Options:

• VESA 100mm x 100mm
• VESA 200mm x 200mm
• Pre-Defined Perimeter Mounting

Additional Details:

• Warranty: 3 Year Standard
• Regulatory Approvals: United States: UL, FCC
• Touchscreen Glass Treatment: Chemically treated for strength
