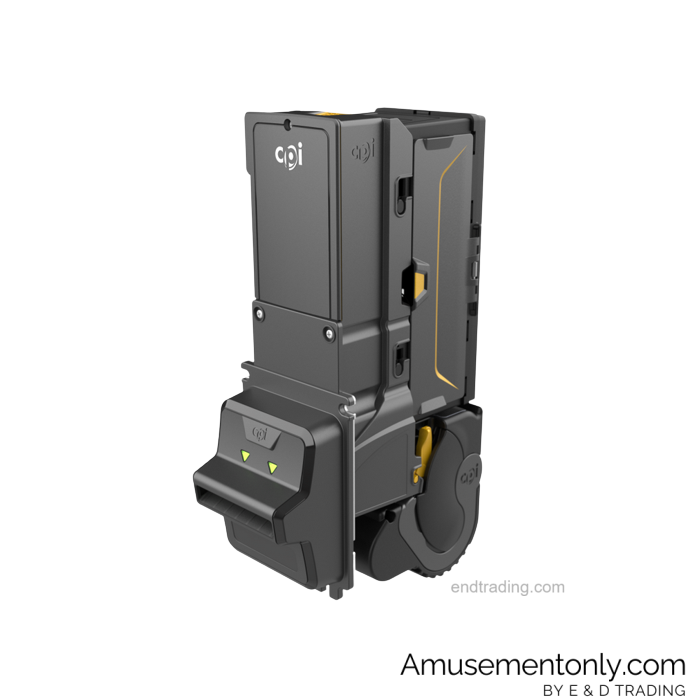

MEI Talos TR7C2-U5MUS Bill Validator W/Recycler
- SKU
- TR7C2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | High Visibility (VFM) "C" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | Yes |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos TR7C2-U5MUS Bill Validator W/Recycler
Overview
The MEI Talos TR7C2-U5MUS is a U.S.-currency MDB bill validator with integrated recycler designed for amusement, kiosk, and redemption payment systems. As part of MEI’s advanced Talos T7 Series, it replaces the discontinued VN27C2-U5MUS, combining rapid note validation with the ability to recycle accepted bills for payout transactions.
Equipped with a C-Bezel (Recycler-Ready Bezel) and modular construction, the TR7C2-U5MUS enhances cash management efficiency by reducing coin usage and improving payout speed. It supports up to two recyclable denominations and features field-upgradeable firmware, optical anti-counterfeit detection, and MDB communication compatibility for plug-and-play system integration.
Key Features
- Accepts and recycles U.S. $1–$20 notes (configurable)
- MDB protocol for vending, kiosk, and redemption systems
- Replaces legacy VN27C2-U5MUS
- High-visibility C-Bezel designed for recycler integration
- Reduces coin handling with dual-denomination payout capability
- Advanced optical and magnetic counterfeit detection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular recycling cassette design
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | C-Bezel (Recycler Configuration) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (up-stacker configuration) |
| Recycling Denominations | Typically $1 and $5 notes |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| TR | Talos Recycler | Indicates Talos series with integrated bill recycler functionality for payout applications. |
| 7 | Model Family | T7 Series — direct replacement for VN27xx validators and recycler units. |
| C | Bezel Type | C-Bezel — designed for recycler integration with wide entry and LED illumination. |
| 2 | Interface Type | MDB protocol — standard vending and redemption communication interface. |
| U5 | Stacker Configuration | Up-stacker design with 500-note stacker box and recycler-compatible mechanism. |
| MUS | Build Code | Standard U.S. factory configuration with MDB firmware and recycler-ready mainboard. |
Summary:
The MEI Talos TR7C2-U5MUS is a recycler-equipped validator replacing the VN27C2-U5MUS, offering fast validation, dual-denomination recycling, and enhanced efficiency for kiosks, redemption systems, and modern vending applications.
AmusementOnly.com is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
