MEI Talos T7C2-U5MUS Vending Bill Acceptor
- SKU
- T7C2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |

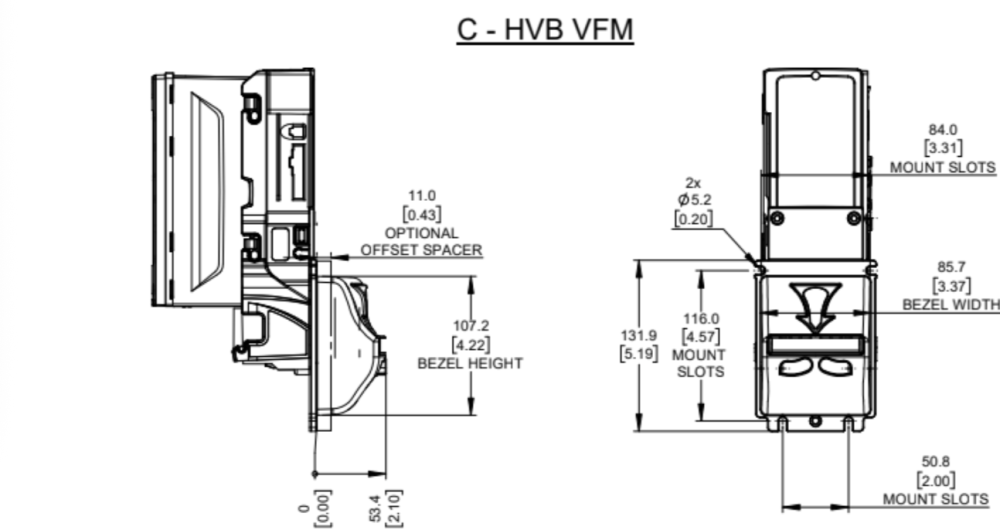

| Bezel type | High Visibility (VFM) "C" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T7C2-U5MUS Vending Bill Acceptor
Overview
The MEI Talos T7C2-U5MUS is a U.S.-currency MDB bill validator engineered for vending, amusement, and kiosk applications. As part of the Crane MEI Talos T7 Series, it replaces the discontinued VN27C2-U5MUS and delivers faster note acceptance, improved durability, and stronger anti-fraud protection.
Equipped with the C-Bezel (Compact Entry Bezel), this model is ideal for machines with limited front-panel space. Built on Crane MEI’s advanced Talos platform, the T7C2-U5MUS uses high-speed optical validation, modular construction, and a gear-driven transport system to ensure consistent, reliable operation in demanding environments.
Key Features
- Accepts U.S. $1–$20 bills with fast, accurate validation
- MDB interface for vending, kiosk, and amusement systems
- Replaces legacy VN27C2-U5MUS
- Compact C-Bezel for tight door clearances and limited mounting spaces
- Enhanced anti-stringing and counterfeit detection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release 500-note up-stacker for easy maintenance
- Durable gear-driven mechanism for high-volume operation
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | C-Bezel (Compact Entry) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s latest-generation validator platform with advanced optics and modular components. |
| 7 | Model Family | T7 Series — successor to the VN27xx validator family. |
| C | Bezel Type | Compact C-Bezel — slim design for tight mounting spaces and limited door clearances. |
| 2 | Power Configuration | MDB communication protocol for vending and amusement applications. |
| U5 | Stacker Configuration | Up-stacker design with 500-note capacity stacker box. |
| MUS | Build Code | Standard U.S. build with MDB firmware and Talos mainboard electronics. |
Summary:
The MEI Talos T7C2-U5MUS replaces the VN27C2-U5MUS, offering Crane MEI’s fast note validation, compact C-Bezel design, and reliable 500-note up-stacker configuration for MDB vending and amusement machines.
