MEI Talos T702-U5MUS Vending Bill Acceptor
- SKU
- T702-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | VFM (Up stacker) "0" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |  |

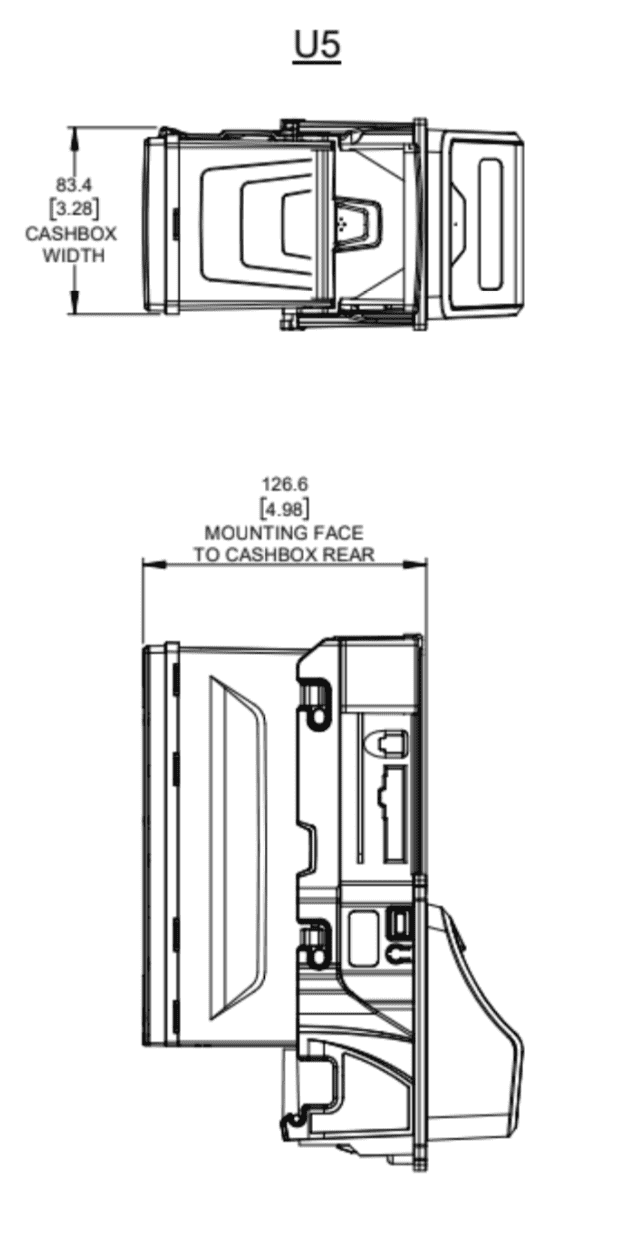

| Cashbox Specs |  |
Description / MEI Talos T702-U5MUS Vending Bill Acceptor
Overview
The MEI Talos T702-U5MUS is a U.S.-currency MDB bill validator engineered for vending, amusement, and kiosk applications. As part of the Crane MEI Talos T7 Series, it replaces the discontinued VN2702-U5MUS and offers faster validation, superior note security, and easier field servicing.
Built on Crane MEI’s proven Talos platform, the T702-U5MUS uses advanced optical sensors and a rugged gear-driven transport system to ensure accurate validation and maximum uptime. Its modular design simplifies maintenance, while its MDB compatibility makes it a true drop-in upgrade for VN27xx validators.
Key Features
- Accepts U.S. $1–$20 bills with high-speed optical validation
- MDB interface for vending, kiosk, and amusement systems
- Replaces legacy VN2702-U5MUS
- Standard Talos bezel for secure front-entry installation
- Enhanced anti-stringing and counterfeit protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release 500-note upstacker for fast on-site maintenance
- Durable gear-driven mechanism for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (upstacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s latest-generation validator platform featuring advanced optics and modular design. |
| 7 | Model Family | T7 Series — direct replacement for VN27xx validators. |
| 0 | Design Variant | Standard Talos validator design for vending and amusement systems. |
| 2 | Interface Type | MDB communication protocol — industry standard for modern vending and kiosk devices. |
| U5 | Stacker Configuration | Upstacker design with 500-note capacity stacker box. |
| MUS | Build Code | Standard U.S. build with MDB firmware and Talos mainboard configuration. |
Summary:
The MEI Talos T702-U5MUS replaces the VN2702-U5MUS, delivering Crane MEI’s fastest bill validation, enhanced optical security, and dependable MDB performance with a 500-note upstacker configuration for vending and amusement applications.
